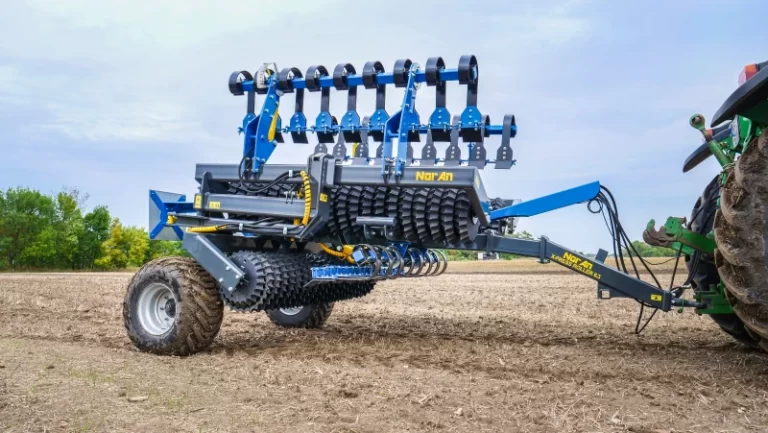

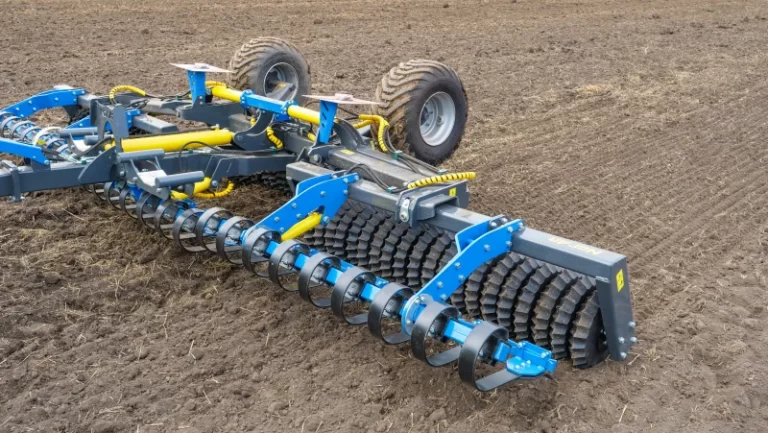

X-PRESS PR prismatic compacting roller
The compaction roller ensures effective soil compaction and recompaction. It also has an important role in seedbed preparation and seedbed sealing after sowing. It is also an effective tool for bush-cutting in autumn. The prismatic roller is also self-cleaning, thanks to the fact that the roller is made up of several semi-spheres of different sizes (45 and 50 cm) with prismatic tips.
450-500mm
4.5-8.0m
80-190 LE
2418-4748kg
Key features
How are X-PRESS PR compacting rollers different?
The prismatic compacting roller has three main advantages over its competitors:
- Roller-mounted prismatic tips make it the most suitable tool for tillering autumn grain crops, achieving yield increases of up to 15%.
- Unique tillering effect with increased crop safety, fertilizer use and yield!
- Flexible weight distribution is one of the biggest advantages of NorAn rollers, as it guarantees even re-compacting across the entire working width, allowing the machines to be used over a wider range.
- Thanks to easy folding, the transport width is less than 2.5 m.
The advantages of X-PRESS PR prismatic rollers
- the unique tillering effect due to the prismatic design;
- up to 15% increase in yields can be achieved in the tillering rollering for autumn grain crops;
- better fertiliser use and yield;
- the hydraulic work rollers also guarantee easy folding and easier transport;
- the flexible weight distribution allows the rollers to be used over a wider range.
Interested in this machine? Have a question? Call now! +36 30 601 31 61
Technical data
| NorAn X-PRESS PR | PR 4,5 | PR 5,4 | PR 6,3 | PR 7,2 | PR 8,0 |
|---|---|---|---|---|---|
| Working width (m) | 4.5 | 5.4 | 6.3 | 7.2 | 8 |
| Transport width (m) | 2.4 | 2.4 | 2.4 | 2.4 | 2.4 |
| Weight with prismatic ring (kg) | 2418 | 2730 | 3100 | 3526 | 4018 |
| Weight of Crossboard line (kg) | 480 | 540 | 608 | 670 | 730 |
| Number of Crossboard springs | 18 | 22 | 26 | 30 | 32 |
| Working speed (km/h) | 8-12 | 8-12 | 8-12 | 8-12 | 8-12 |
| Wheel size | **10.0/75-15.3 | **10.0/75-15.3 | 400/60 - 15.5 | 400/60 - 15.5 | 400/60 - 15.5 |
| Number of hydraulic circuits | *2-3 DA | *2-3 DA | *2-3 DA | *2-3 DA | *2-3 DA |
| Traction power requirements | 80-110 | 100-130 | 120-150 | 140-170 | 160-190 |
DA = double action (min. 180 bar)
*3 DA required for Crossboard smoother
** = 400/60 – 15.5 wheels available as an option for CB/PR 4,5 and CB/PR 5,4 cylinders.
X-PRESS PR prismatic compacting roller
Options
Balloon wheels (for 4,5 and 5,4 wide rollers)
Crossboard smoother (with blade)
Two-armed drawbar (KAT 2){
Crossboard smoother (with standard blade)
