Shredding rollers for efficient shredding
The shredding rollers can be used to shred stalk residue after harvesting sunflower and rape, and also to crush green manure crops.
Benefits of NorAn shredding rollers
Unbeatable MXR roller sections for shredding
These make the NorAn X-PRESS CT work perfectly in all conditions.
They are very economical to operate because there is no need for daily maintenance, no need for a PTO drive, and the machine contains no gearboxes, while the blades have a lifespan of SEVERAL THOUSAND HECTARES.
The traction power requirement of the roller is very low, and the optimum working speed is 8-15 km/h, so the area performance is several times higher and the working quality is orders of magnitude better than for conventional forage crushers.
15 cm shred size + also shreds trampled stalks + the blades are self-sharpening + in addition to shredding, it also does half the soil work due to the favourable angular position of the blades, so you can even do ultra shallow stubble ploughing in wheat, which means that weed seeds and volunteer plants hatch quickly.
More powerful shredding with a smaller diameter
A careful design process and countless field tests have resulted in the unique NorAn MXR shredding roller body, which features 9 interchangeable HARDOX blade rows along a 500 mm diameter, giving an RPM one and a half times greater than that of its 900 mm diameter counterparts at the same working speed.
The angle of the blades relative to each other is much more favourable, so this cylinder can be used longer in wet conditions.
Quality of shredding = weight per blade
NorAn’s X-PRESS CT roller, with its unique 500mm diameter and 9 rows of blades, loads the entire weight of the roller onto 1 or 2 rows of blades (D500 closed), while its larger 8-900 mm diameter counterparts, which have 15 rows of blades, load the weight of the roller onto 2-3 rows of blades (D800 closed), giving a higher load per blade than the NorAn cylinder.
The blades of the MXR shredder bodies are arranged in a row, so that the roller also does a significant amount of impact work as each blade hits the ground, greatly increasing its efficiency compared to its split-blade counterparts.
The open system of split-blade shredding rollers puts the weight of the significantly lighter machine on 5-6 rows of blades, which gives by far the worst chopping quality (D500 open).

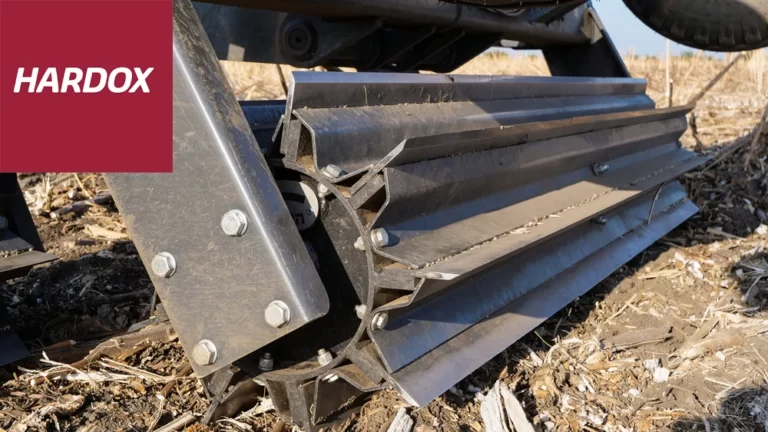

Guaranteed long life
Our shredding roller blades are made of genuine HARDOX steel, supplied by SSAB directly from Sweden.
Hardox is the only wear-resistant plate on the steel market that guarantees that the core hardness is minimum 90% of the surface hardness!
Hardox wear resistant sheet is the world’s leading wear resistant steel.
Hardox is tough from the surface to the inside of the material, throughout its entire cross-section, giving you longer life and greater productivity in even the most challenging environments.
If the blade on the shredding roller is worn out, there is no need to worry, because the blades can be easily replaced by loosening the fixing screws.

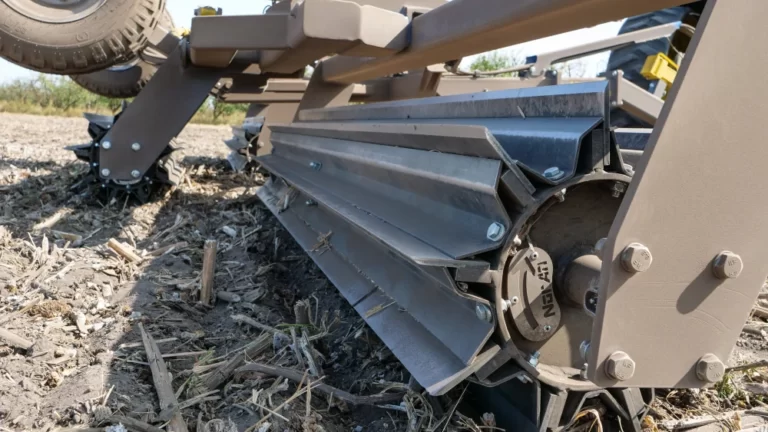

Water fillable roller bodies
All NorAn MXR shredding roller bodies are designed to be filled with water or oil to increase shredding efficiency.
In the case of using water for filling, make sure that the risk of frost is eliminated as winter approaches.
Filling is very easy: you just need to remove one of the two cover panels between the two rows of blades, and you have access to the ¾ inch filling hole.
no gearbox
no problem
As none of our shredding rollers have gears and do not require a PTO drive to operate, there is no need to think about expensive gears and bearings for maintenance, as none of our machines have them.
Daily maintenance is limited to lubricating the grease points.
NorAn shredding roller solutions
X-Press CT towed shredding rollers
The X-Press CT towed shredding rollers offer an effective solution for shredding stalk residues after harvest, crushing green manure crops and even extra shallow stubble ploughing after grain crops on looser soils.
X-Press CT rollers are available in working widths from 4.5 m up to 8.0 m.
This size range allows every farm to find a machine to match the size of its area.
Pro-Cutter 3.0 suspended shredding roller
The Pro-Cutter 3.0 is a suspended shredding roller that can be operated economically with a smaller power machine, even an MTZ 82 tractor.
When used on front hydraulics with a larger power machine, you can protect your tractor from damage caused by stalks and easily perform a second operation in one pass, saving valuable time and fuel.
MXR shredding roller bodies
This solution is recommended for those who already have an unused roller frame or plan to use the frame for shredding in addition to compaction.
The MXR shredder bodies can be easily mounted on the factory bearings, so you can turn your own cambridge or prismatic cylinder into a shredding roller, regardless of brand.
