MXR CYLINDER Bodies
Cambridge, do you have a prismatic or crosskill cylinder and do you mind not using it all year round?
Are the ring members worn out, uneconomical to repair and just sitting in the corner of the garden?
The NorAn MXR shredder roll insert is an excellent way to do this.
In this case, we manufacture roller bearings that can be mounted on the original bearing arrangement in place of the factory rollers, which, once installed, can be shredded efficiently with your old roller without any modification.
14-15cm
50cm
2-9m
50-150 LE
Key features
Brand-independent conversion option
The brand of your roller does not matter to us.
Whether it’s Väderstad Rollex, He-Va Tip Roller, Dal-Bo Maxiroll or Framest Fraroll, you can be almost sure that we have already produced shredding rollers for these types.
If you have a different type of roller, we can design it for you for free!
Easy to install
All of our MXR shredder bodies are custom designed and manufactured to your roller frame, so you don’t need any modifications.

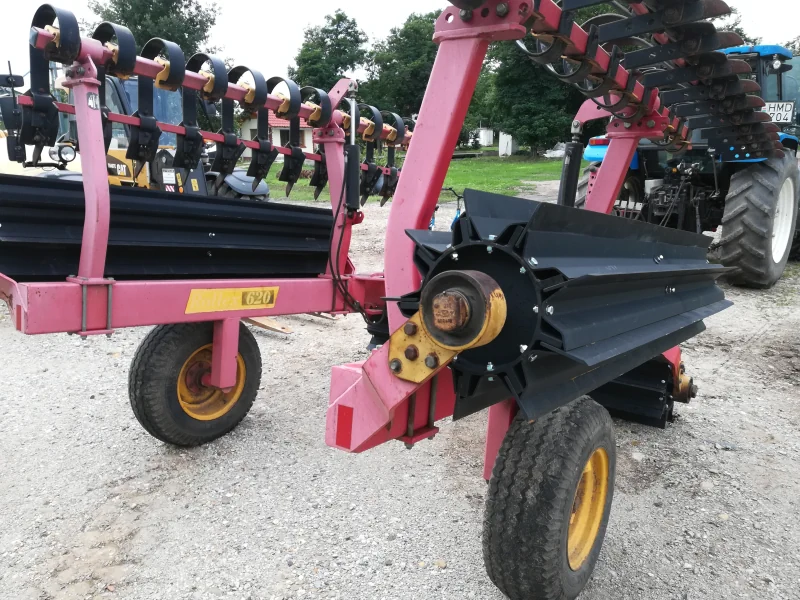

You remove the factory cast roller assembly and reinstall the shredding roller on the factory bearing points.
With the help of a front loader and a few people, this operation takes about 1.5 hours.
100% size guarantee
After ordering your shredding roller, we will quickly agree on the exact type and size.
We’ll get the designs out if we have made one before, and if we haven’t already, we’ll design it in a few days and send the drawing for a final check.
After that, we offer a 100% size guarantee on approved drawings.
We provide gluing plates for every cylinder order, if there is a minimal error in the measurement, we can easily
Interested in this machine? Have a question?Call now! +36 30 601 31 61
Technical data
| NorAn MXR roller inserts for work machines | Vaderstad Rollex | He-Va Tip-Roller 630 | Dal-Bo Maxiroll 630 | Framest Fra-Roll 6500 |
|---|---|---|---|---|
| Number of roller sections (pcs) | 3 | 3 | 3 | 2+1 |
| Width of roller sections (m) | 2.08 | 2.16 | 2.16 | 2,0+2,65 |
| Roller body type | Can be filled with water | Can be filled with water | Can be filled with water | Can be filled with water |
| Shred size (cm) | 14-15 | 14-15 | 14-15 | 14-15 |
| Roller diameter (mm) 500 | 500 | 500 | 500 | 500 |
| Roller section weight (kg/m) | 232 | 232 | 232 | 232 |
MXR cylinder body
Gallery
Contact us
Do you need help choosing or would you be interested in seeing one of the machines? Contact us!
Phone number:
+36 30 601 31 61
We can manufacture a shredding roller for all prismatic and cambridge rollers with space for a cylinder diameter of 500 mm.
No. No modifications are necessary. In all cases, our rollers can be fully fitted to the factory bearing arrangement.
We know the production dimensions of most popular cylinders, in these cases only one check is needed. If we haven’t already had your kind of roller, we can manufacture your custom roller based on 3 simple dimensions – bearing backspacing, working width and bearing size.
The shredding roller typically shreds the soil surface stalk residues to a fine size (15 cm).
This has the advantage that the chopped plant stems decompose more quickly in the soil.
Thanks to the unique 500 mm roller diameter, the blades lock together at a greater angle than their larger diameter (8-900mm) counterparts, and the smaller diameter means that the NorAn shredding rollers get stuffed with mud much later.
You can run your shredding roller until it is half-wet without any problems.
Sunflower and rapeseed stubble residues can be shredded with high efficiency even with green stalks.
Green manure plants up to 1.2-1.5 m height can be crushed without problems with the NorAn roller.
It can shred 60-80% of corn stalks depending on the stalk weight.
In addition to shredding, the NorAn roller also performs a „semi-value” soil work at working speeds above 10-12 km/h.
So you can even use the roller for ultra-shallow ploughing, thanks to the aggressive angularity of the blades, which lift the top 2-4 cm of the soil as it leaves the ground.
