X-PRESS CB Cambridge compression cylinder
The Cambridge compaction roller is best used in conventional rolling, after sowing or in the spring.
The wide ring sections keep the roller in motion, while the narrow break rings provide self-cleaning, and also have a capacity for light tillage.
505-530mm
4.5 - 8.0m
80-190LE
2738-5153kg
Key features
What makes X-PRESS CB Cambridge compaction rollers different?
The Cambridge compaction cylinder boasts three main advantages over its competitors:

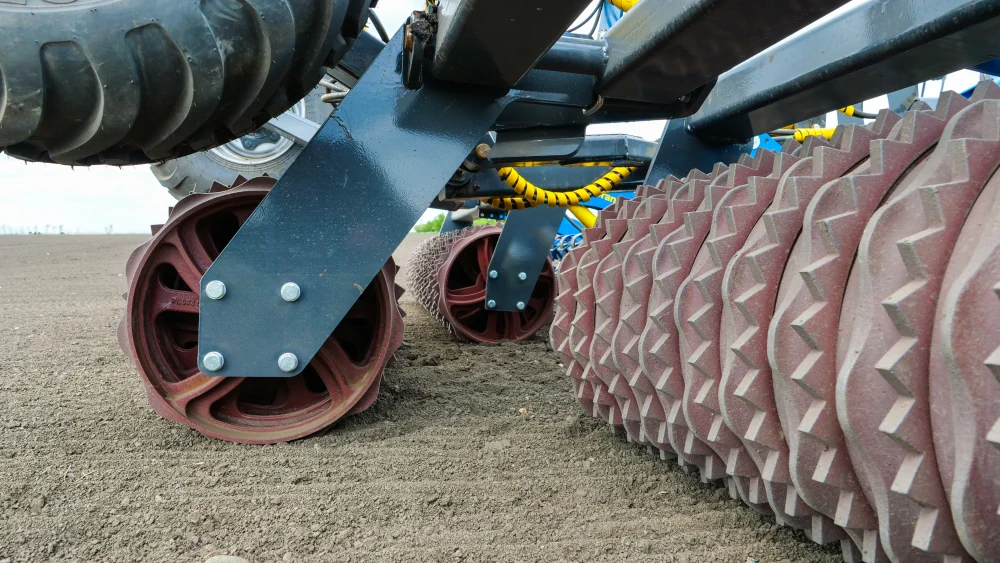

- It is made up of two types of rings: wide ring sections and narrow break rings. The former are important for keeping the roller in motion, while the latter are important for self-cleaning.{
- Due to the flexible weight distribution, NorAn rollers ensure even re-compacting across their entire working width, allowing the roller to be used over a wider range.

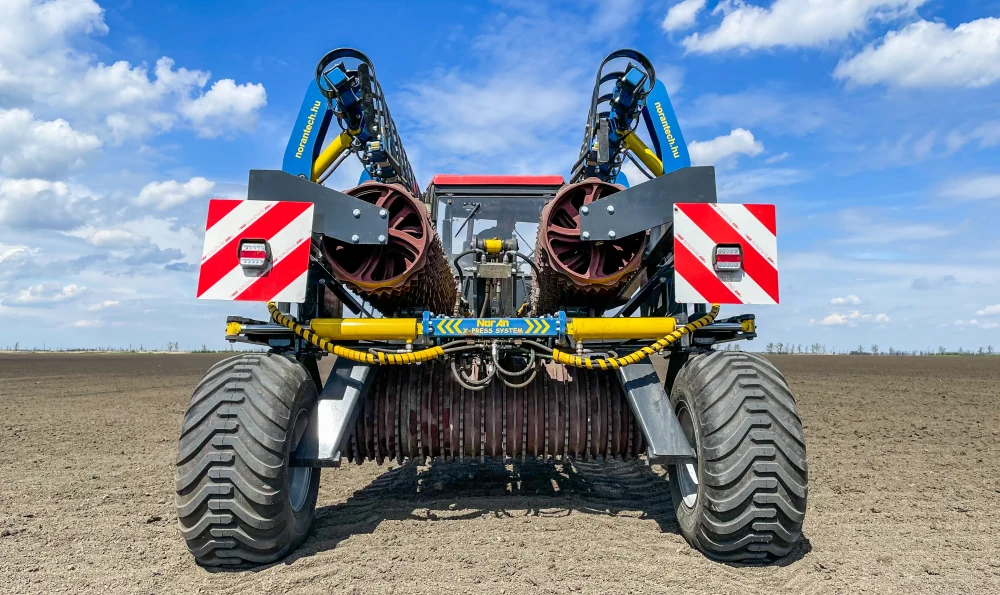

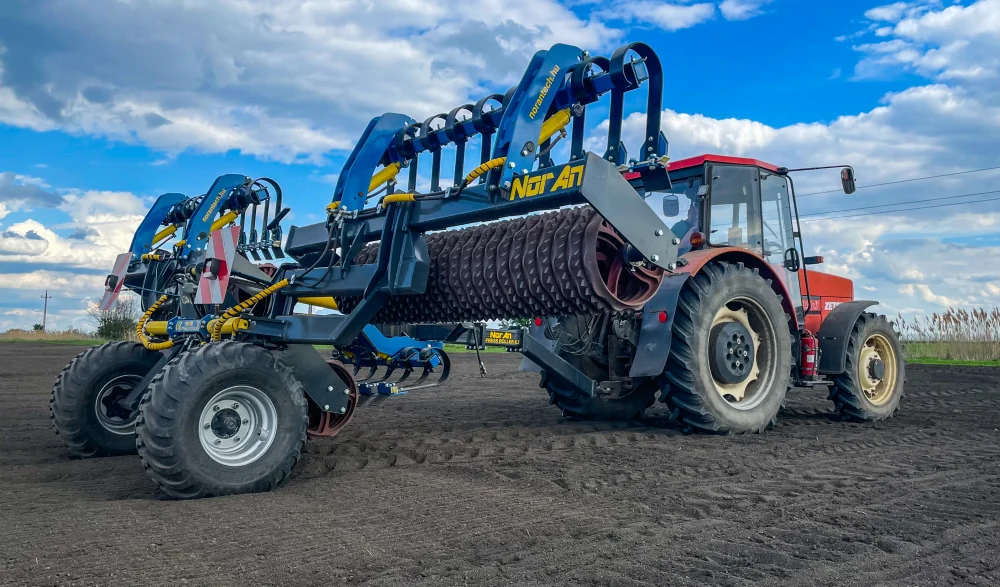

- The compaction roller can be folded easily, as a result of which the transport width is less than 2.5 m, and it also makes it easier to react when reaching mud spots.
Advantages of the Cambridge compaction roller
- flexible weight distribution ensures balanced re-compaction across the entire working width, even on varied terrain, allowing a wider range of roller use;
- the unlimited self-cleaning capacity saves a lot of unnecessary man-hours (spent on cleaning);
- easy folding also means easier transport;

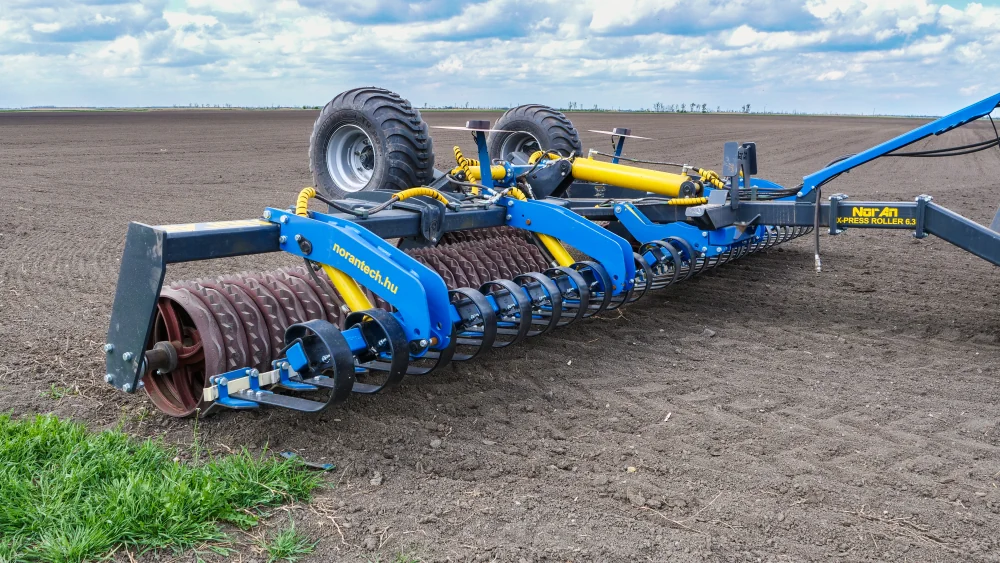

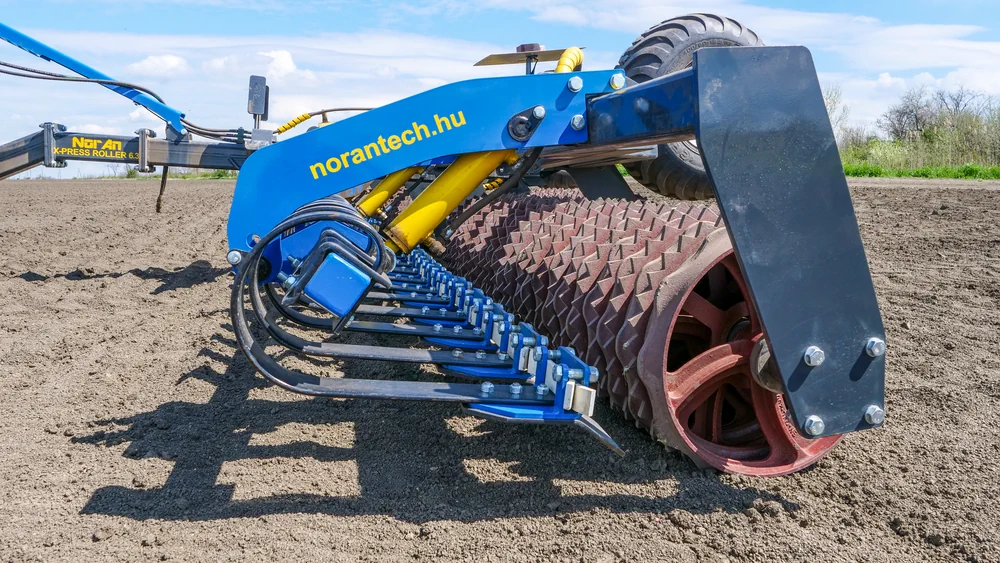

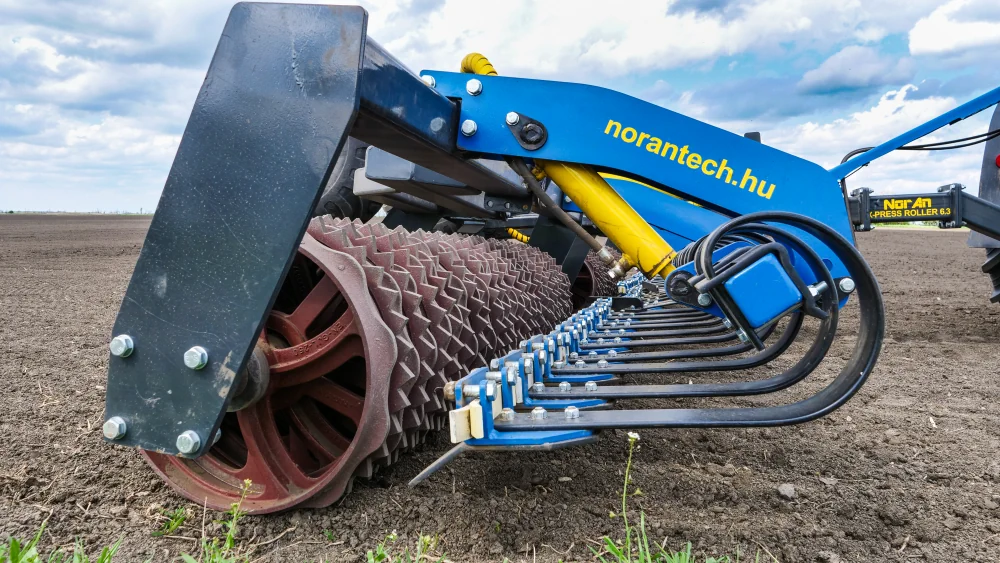

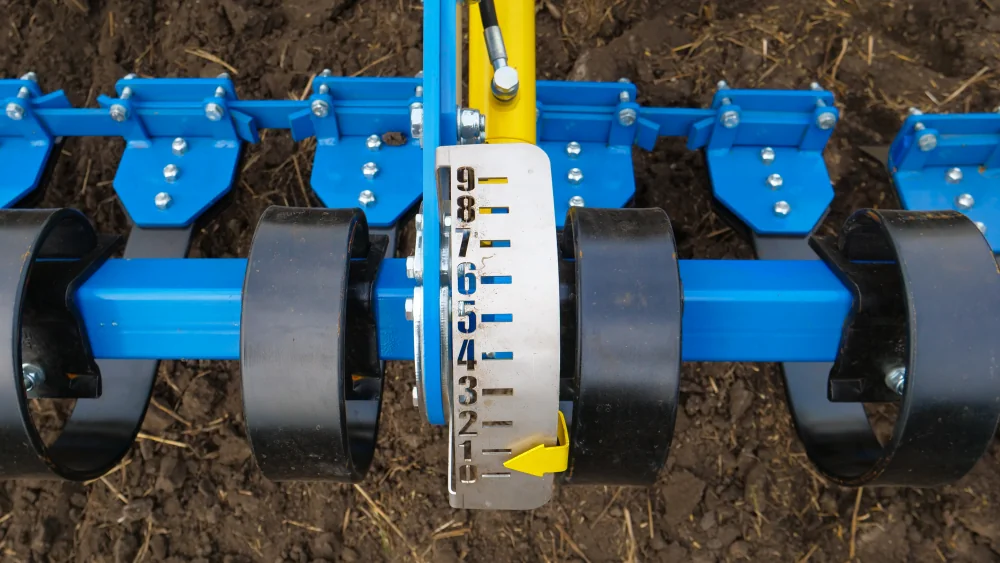

- the CrossBoard smoothing line, which can be fitted to all NorAn X-press rollers, allows smoothing to be carried out at the same time as rolling;
- thanks to the optional double-blade blade type, soil cracking will not be a problem any more.
Interested in this machine? Have a question? Call now! +36 30 601 31 61
Technical data
| NorAn X-PRESS CB | CB 4,5 | PR 5,4 | PR 6,3 | PR 7,2 | PR 8,0 |
|---|---|---|---|---|---|
| Working width (m) | 4.5 | 5.4 | 6.3 | 7.2 | 8 |
| Transport width (m) | 2.4 | 2.4 | 2.4 | 2.4 | 2.4 |
| Weight with cambridge ring (kg) | 2738 | 3162 | 3577 | 4000 | 4423 |
| Weight of Crossboard line (kg) | 480 | 540 | 608 | 670 | 730 |
| Number of Crossboard springs | 18 | 22 | 26 | 30 | 32 |
| Working speed (km/h) | 8-12 | 8-12 | 8-12 | 8-12 | 8-12 |
| Wheel size | **10.0/75-15.3 | **10.0/75-15.3 | 400/60 - 15.5 | 400/60 - 15.5 | 400/60 - 15.5 |
| Number of hydraulic circuits | *2-3 DA | *2-3 DA | *2-3 DA | *2-3 DA | *2-3 DA |
| Traction power requirements | 80-110 | 100-130 | 120-150 | 140-170 | 160-190 |
DA = double action (min. 180 bar)
*3 DA required for Crossboard smoother
** = 400/60 – 15.5 wheels available as an option on CB/PR 4.5 and CB/PR 5.4 rollers.
X-Press CB cambridge cylinder
0%
Options
Crossboard smoother (with standard blade)
Crossboard smoother (with blade)
Two-armed drawbar (KAT 2)
Balloon wheels [1}400/60 - 15.5 {2] (for roller widths 4.5 and 5.4)

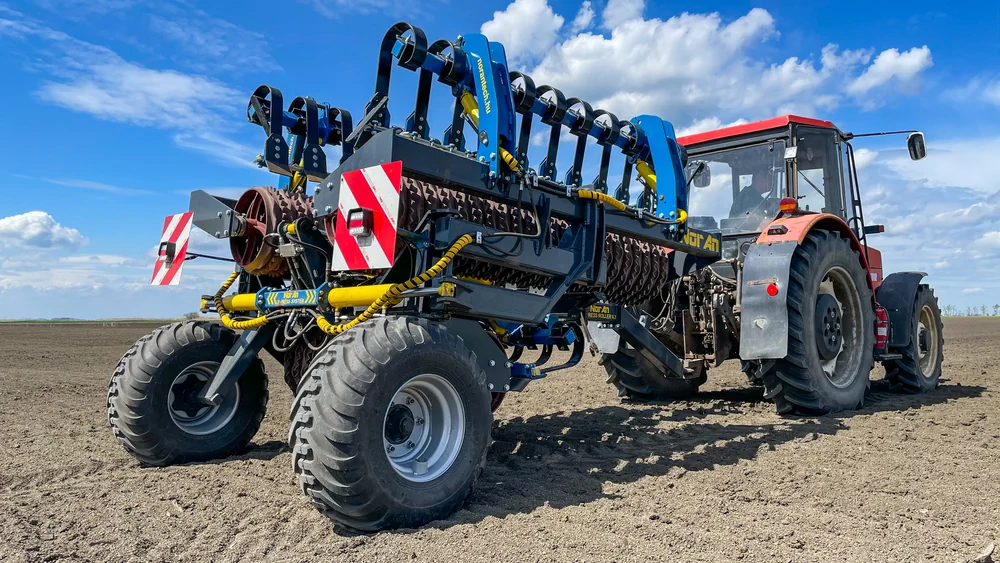

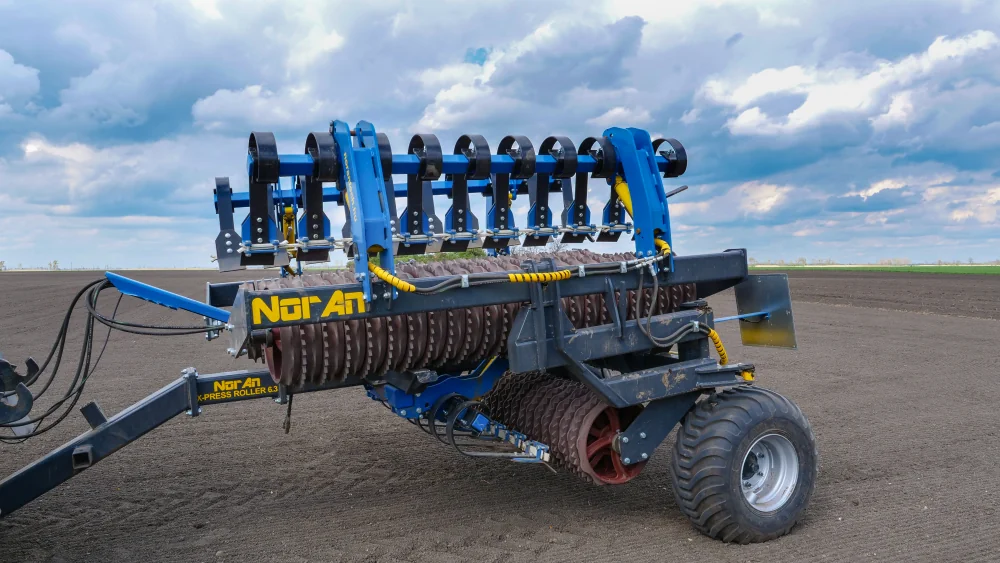

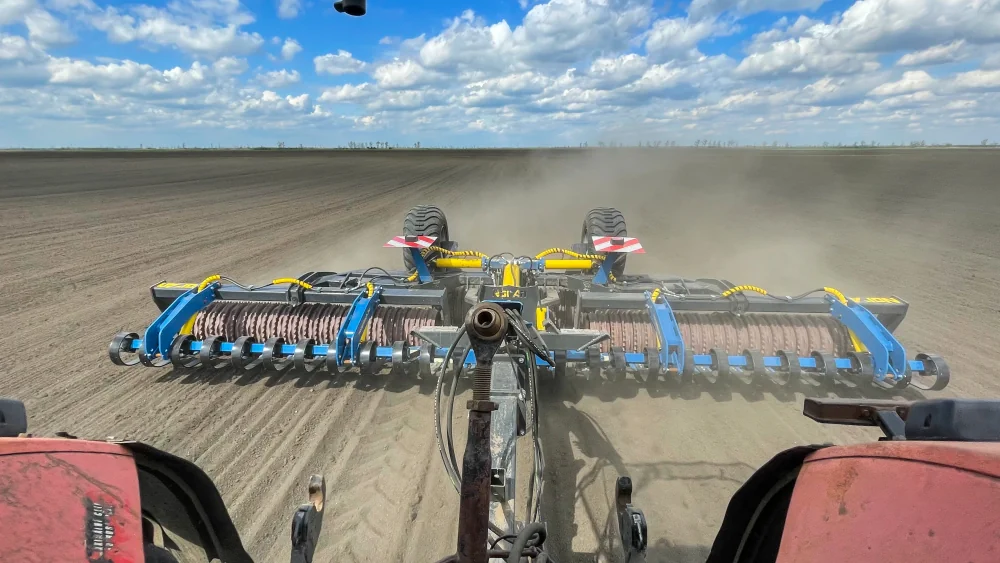

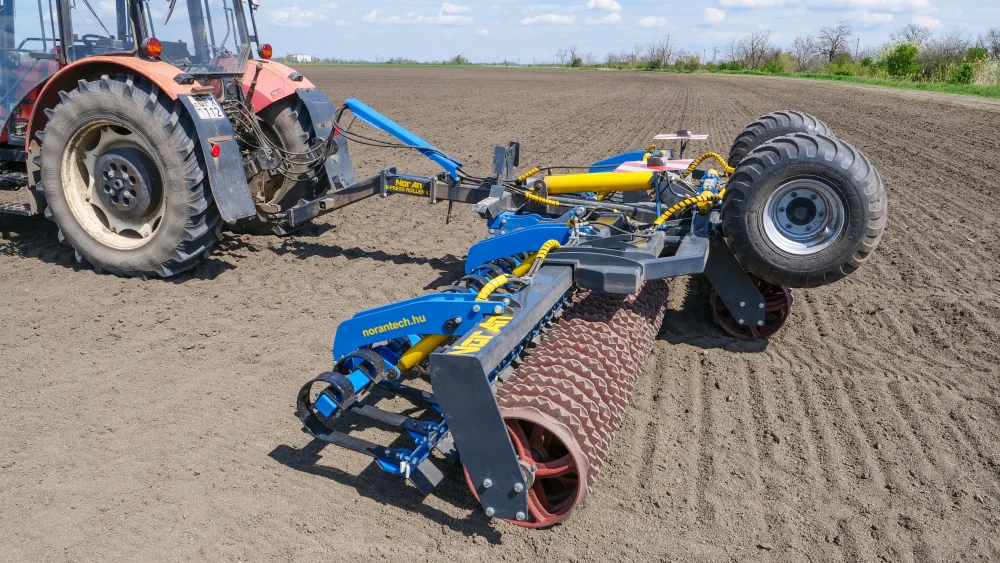

Gallery
